Features
- High-Speed Performance: Efficiently reduces amalgam, porcelain, metal, and tooth structure.
- Adjustable Pressure: Manual switch for air (0-4kg) and water (0-2kg) control.
- Water Supply System: Ensures cavity cleaning and waste removal.
- Air Turbine Technology: Removes decay and provides fine finishing.
- Portable & Durable: Compact design with a coated surface for safety.

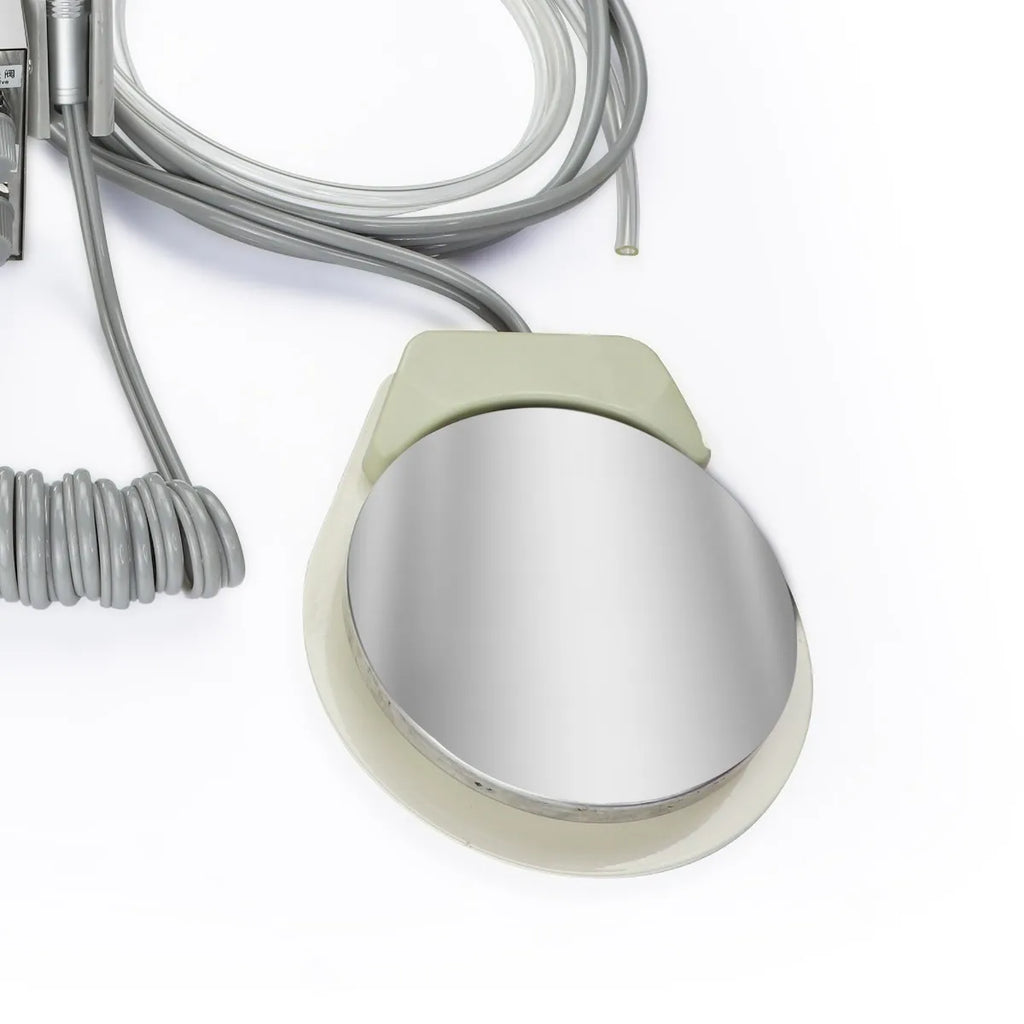

- Easy to Use: Comfortable foot switch operation.
-
Minimal Maintenance: Reliable, long-lasting performance.
Description

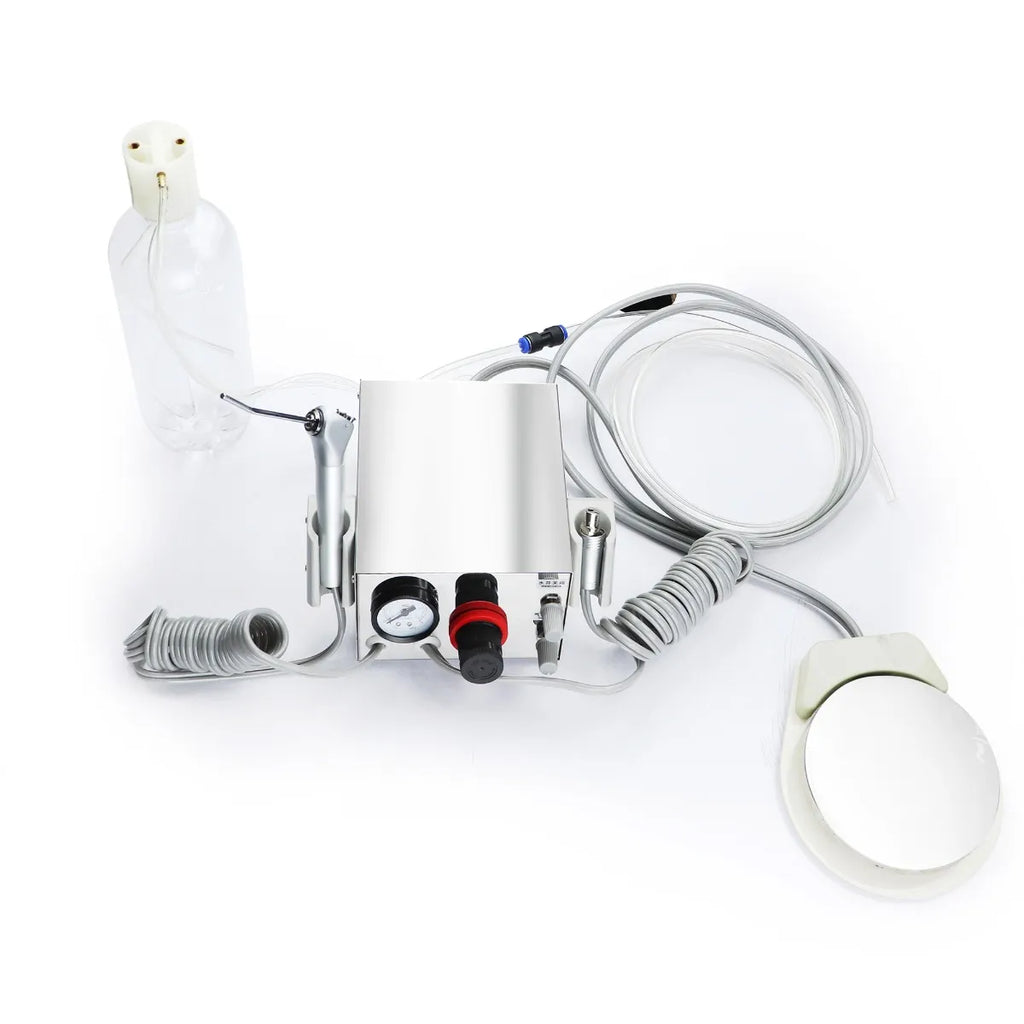

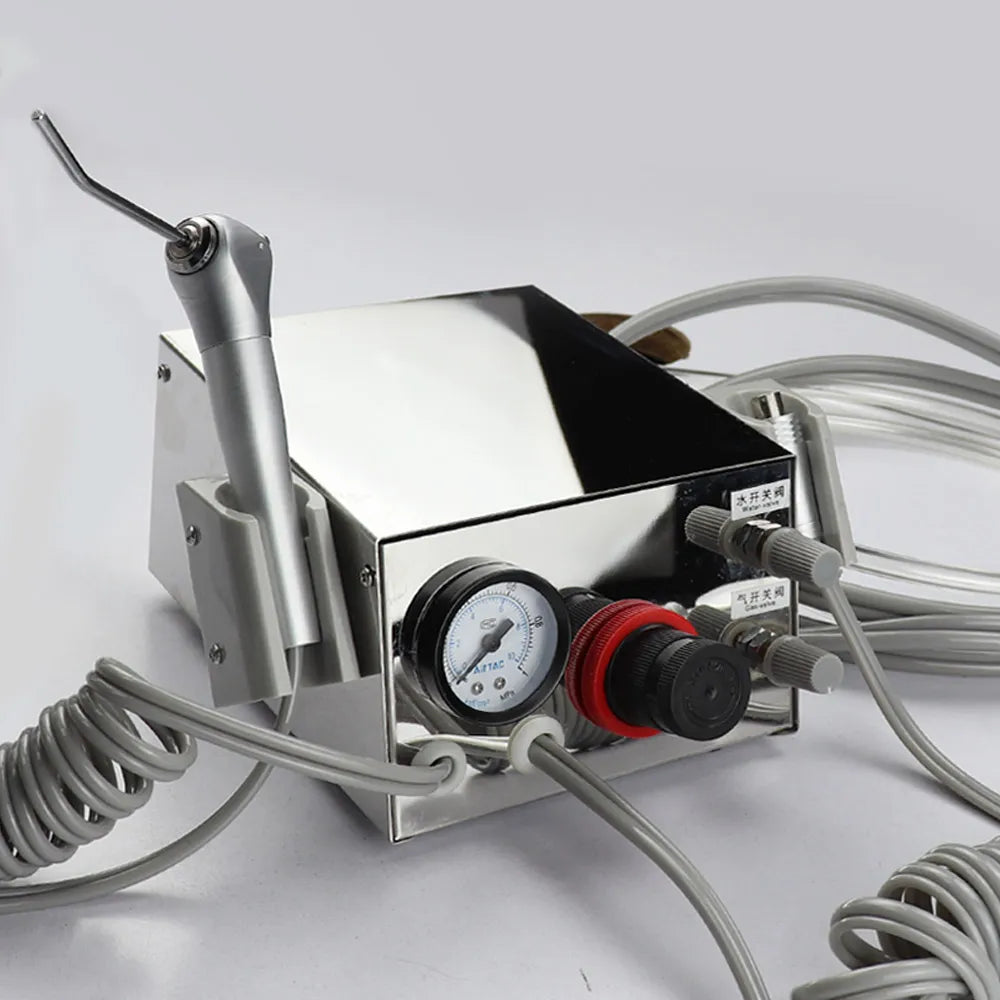

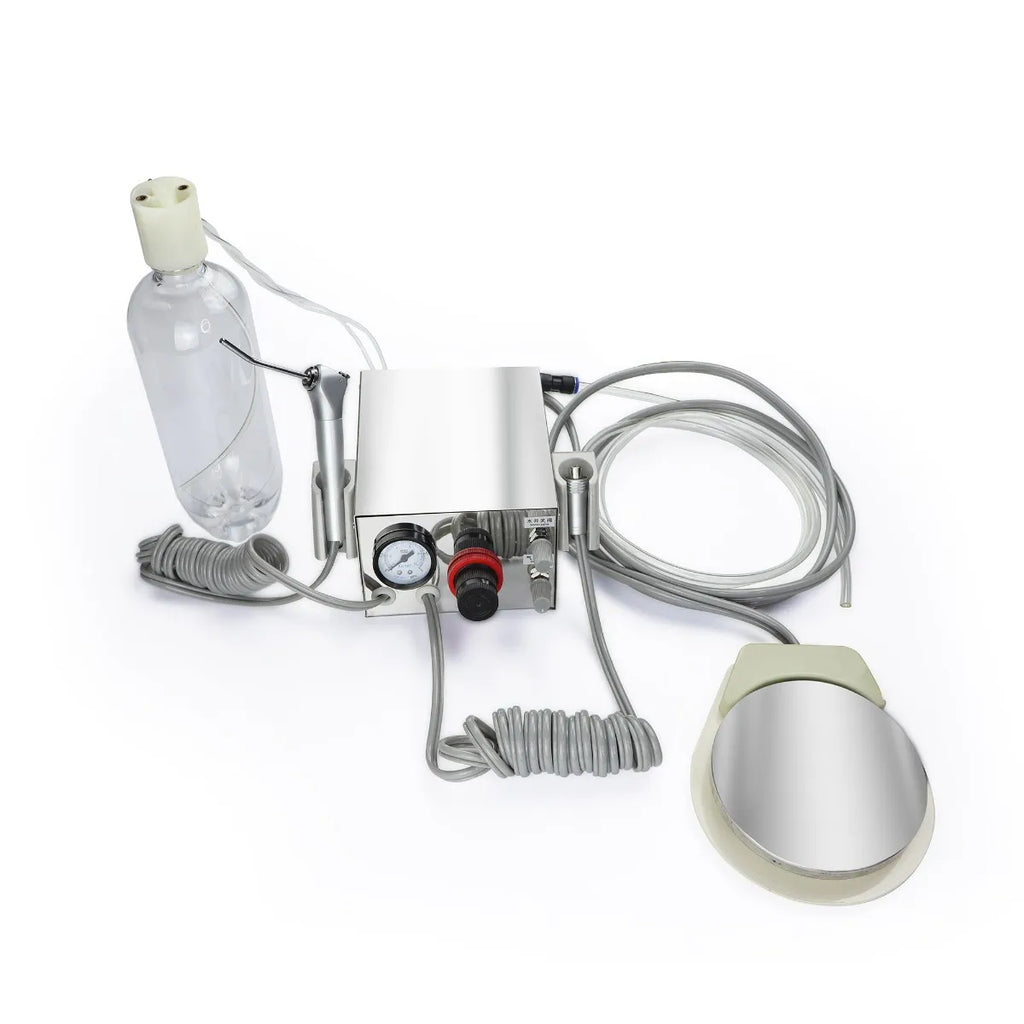

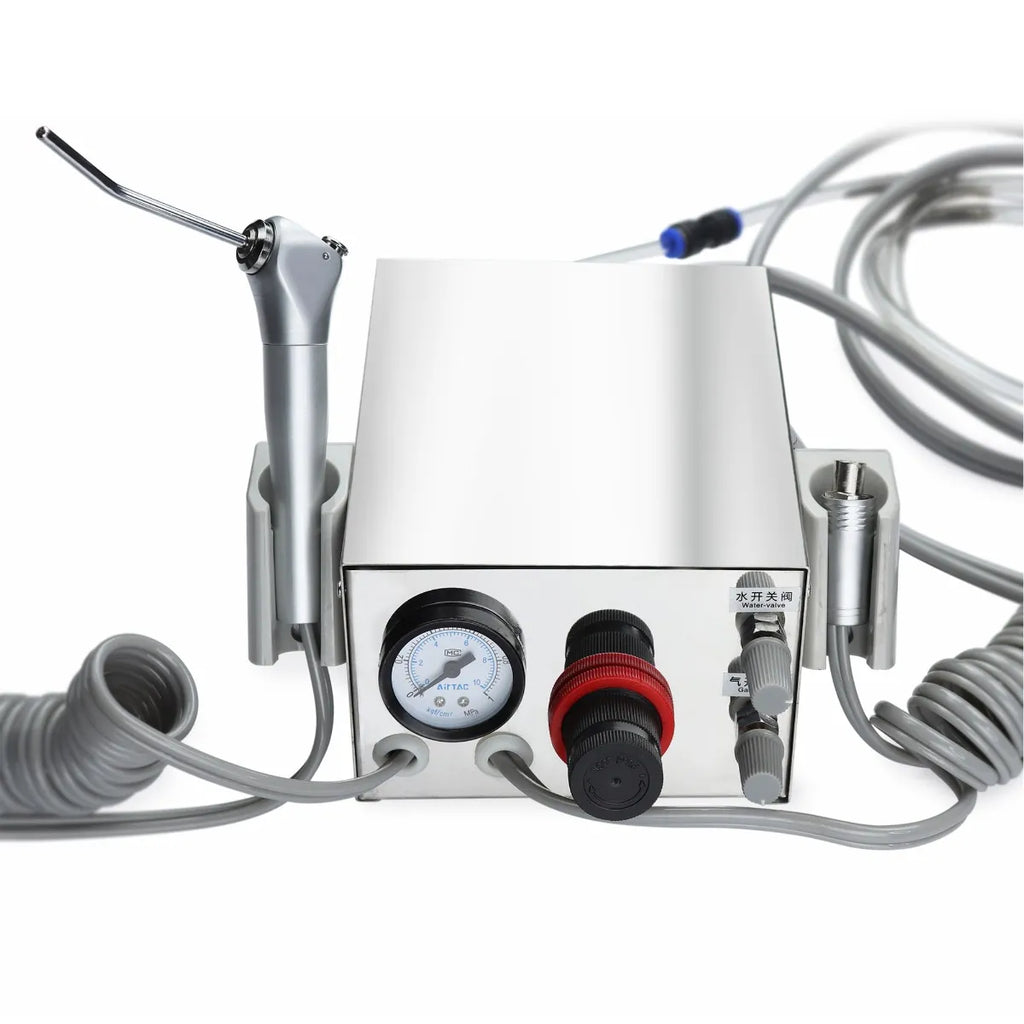

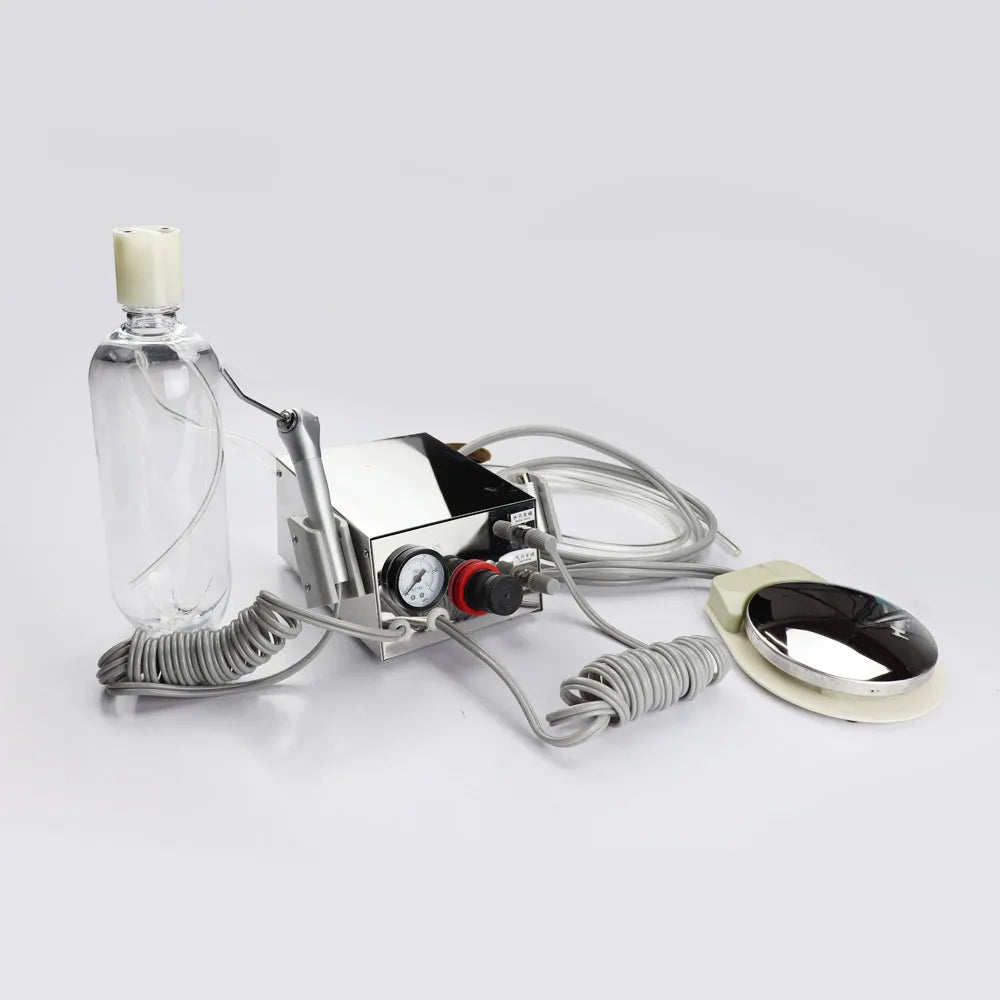

Metal Turbine Machine 2 Hole It is perfect for rapid reduction of all materials such as amalgam, porcelain, metal, and tooth structure. Adjust the pressure level with the manual switch in this airotor box as per your requirement. The water setup supplies the water to clean the cavity waste and removes it off. Air turbine connected to this removes decay portions and lends fine finishing & polishing for a cavity preparation. This control box is fully equipped with coated surface and no need worry about electric shocks.This box combines quality and furnish a highly beneficial line of equipments that are dimensionally accurate, easy to use, and highly durable and need minimal maintenance.This portable dental unit is used by dentists to run high speed handpieces. This switch is comfortable to handle during dental treatments.
Key Specifications
- Control system: Air control.
- Air pressure: Input 4-8kg, output: 0-4kg.
- Water pressure: Input: 2kg, output: 0-2kg.
- Air pressure for handpiece: 0.01Mpa~0.4Mpa
- Water pressure: 0.1Mpa~0.25Mpa
- Foot switch size: Approx. 17.5x15x3cm/ 6.89x5.91x1.18".
-
Water bottle size: Approx. 25x8cm/ 9.84x3.15" (600ml).
Packaging
- 1 X Dental Turbine Unit.
- 1 X High or low speed handpiece connector.
- 1 X Water bottle.
- 1 X Foot switch.
- 1 X 3 Way Syringe.
- 1 X Plastic tube for connection to air compressor.
Direction To Use
Setup & Installation
- Place the Metal Turbine Machine 2 Hole on a stable surface near the dental chair.
- Connect the air supply to the air inlet port (ensure an input air pressure of 4-8kg).
- Attach the water supply tube to the water inlet (ensure input water pressure of 2kg).
- Securely fit the high-speed handpiece to the designated port.
- Connect the foot switch to the control box.
Adjusting Air & Water Pressure
- Use the manual switch to adjust the air pressure (0-4kg) according to your procedure requirements.
- Set the water pressure (0-2kg) to ensure an optimal cooling effect during cavity preparation.
Operation
- Turn on the machine and check the air and water flow.
- Activate the handpiece using the foot switch to control speed and pressure.
- Ensure proper water flow to clean cavity waste effectively.
- Use the air turbine to remove decayed portions and finely polish the cavity.
Post-Use Cleaning & Maintenance
- Turn off the air and water supply after use.
- Clean the handpiece and water bottle to prevent contamination.
- Wipe the control box with a dry cloth to maintain hygiene.
- Regularly check air and water connections to ensure smooth operation.
Safety Precautions
- Do not exceed recommended air and water pressure levels.
- Ensure proper grounding to avoid electrical hazards.
- Always use sterilized handpieces before dental procedures.
- Keep the machine away from moisturewhen not in use.
