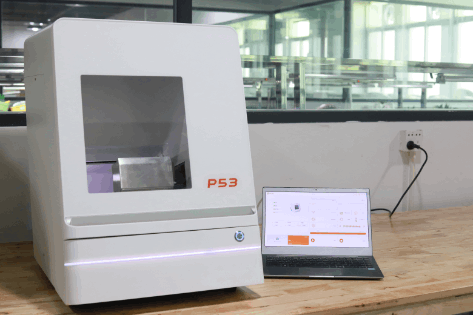

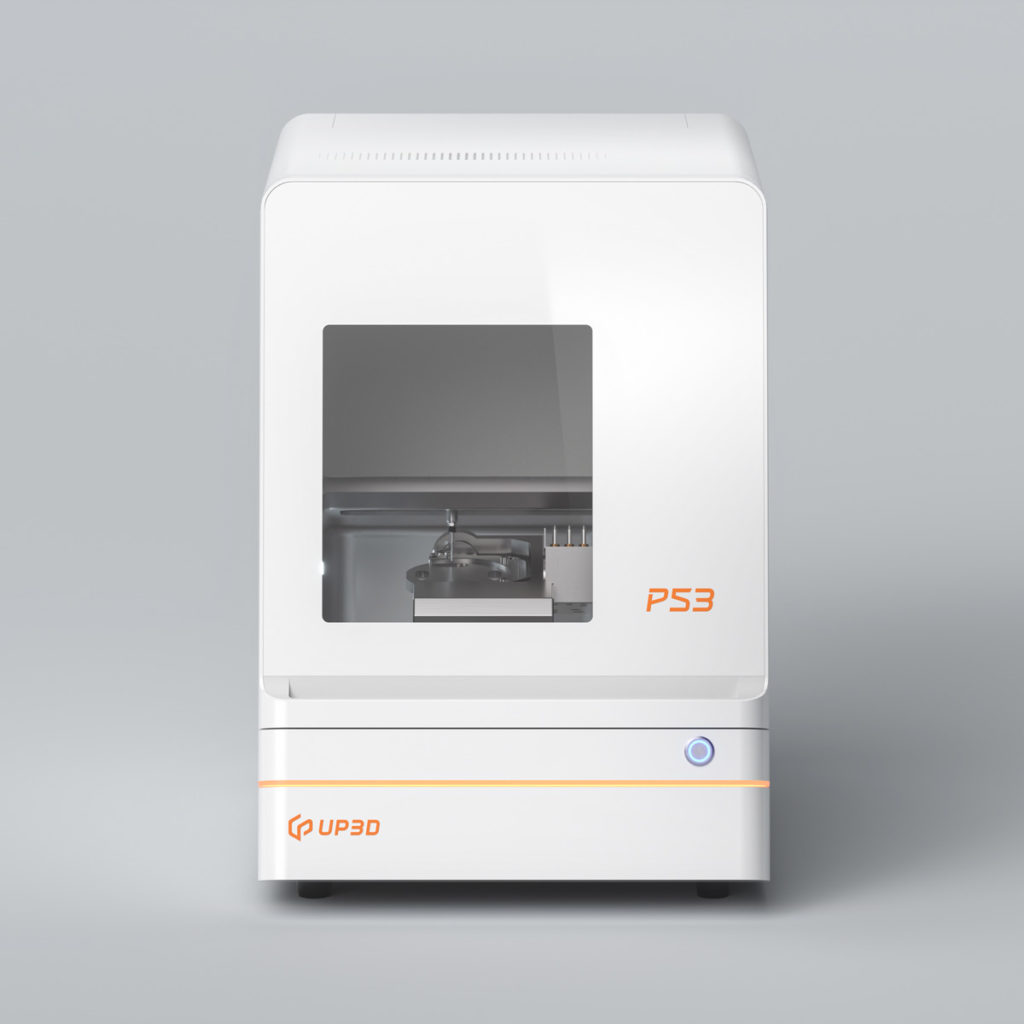

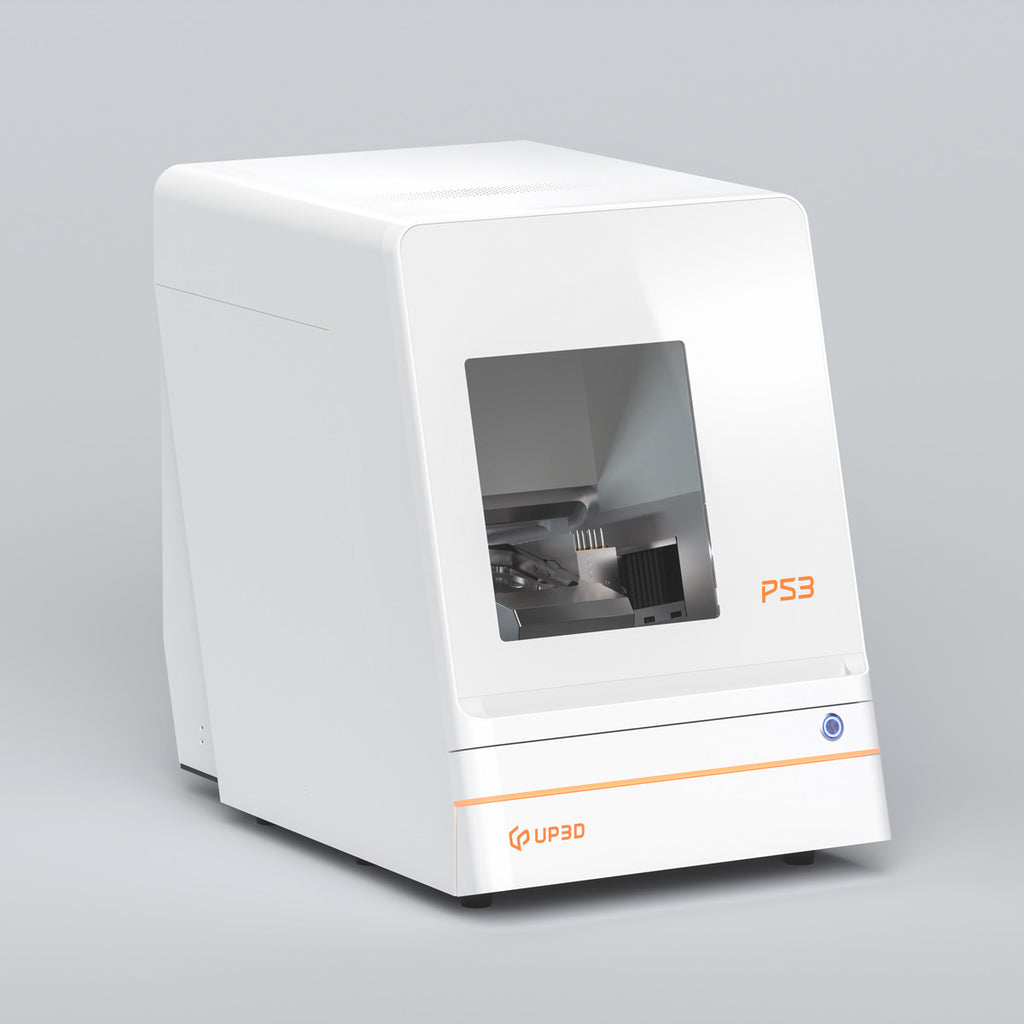

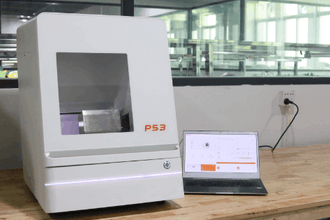

UP3D P53 5-Axis Dental Dry Milling Machine is a professional-grade dental laboratory CAD/CAM milling unit developed by UP3D. Featuring 5-axis simultaneous motion, automatic tool changing, automatic calibration, and intelligent bur life monitoring, the P53 digitises and scales up traditional dental prosthetic processing — delivering precise, efficient milling of zirconia, PMMA, wax, PEEK, and soft materials.

Key Features:

• 5-axis simultaneous motion — X/Y/Z + A(±30°) + B(±360°) for complex prosthetic geometries
• Automatic tool changer — 11-tool capacity with air-pressure actuation (>0.5 MPa)
• Automatic calibration — reduces setup time and ensures consistent milling accuracy
• Automatic bur life calculation — intelligent monitoring and automatic renewal alerts
• 90° milling capability — precise embrasure processing for anterior teeth; natural, complete tooth form
• LED milling progress display — reduces personnel inspection time and improves workflow efficiency
• Dry milling — no coolant required; clean, low-maintenance operation
• UPCAM and Millbox CAM software compatible
• Network interface data transmission

Millable Materials:

• Zirconia
• PMMA
• Wax
• PEEK
• Soft materials

Milling Speed (Reference):

• Coping: Zirconia ≈ 10 min | Wax ≈ 4.5 min
• Crown: Zirconia ≈ 13 min | Wax ≈ 5.5 min

Box Contents:

• Main unit (milling machine)
• Pressure regulating filter
• Power cable
• 7 burs
• Hexagon wrench
• Wax & network cable
• Calibration disc
• Fixture screw
• USB drive & dongle
• T-type torque wrench

Technical Specifications:

• Model: P53
• Dimensions: 718 × 443 × 628 mm
• Weight: 87 kg
• Input Voltage: AC 200–240V, 50–60Hz
• Maximum Power: 1.1 kW
• Spindle Power: 0.35 kW (max)
• Spindle Speed: Up to 30,000 rpm
• Max Feed Rate: 3,000 mm/min
• Milling Range: X/Y/Z: 167/206/104 mm | A: ±30° | B: ±360°
• Tools Quantity: 11
• Tool Diameter: Φ2mm + Φ1mm + Φ0.6mm (Φ4 calibration bur)
• Disc Specification: Round disc Φ98mm, max 30mm thickness
• Spindle Clamping: Φ4.0mm
• Spindle Cooling: Air cooling (0.25–0.35 MPa)
• Milling Mode: Dry milling
• CAM Software: UPCAM, Millbox
• Data Transmission: Network interface
• Brand: UP3D
• Country of Origin: China

For professional dental laboratory use only. Installation and commissioning should be performed by a qualified technician. Ensure adequate compressed air supply (min. 0.5 MPa) before operation. Follow all electrical safety guidelines for the rated input voltage.
