Woodpecker Endodontic Scaler Tips – Ultrasonic Root Canal & Retrograde Surgery Tips

Woodpecker Endodontic Scaler Tips are precision-engineered ultrasonic instruments designed for root canal procedures, retreatments, and retrograde endodontic surgeries. Each tip is purpose-built for a specific clinical function — from canal cleaning and debris removal to diamond-coated retreatment and retrograde root planning.

Available Tips & Clinical Functions

• E-1: 120° angle holder for 0.8mm U-files — anterior root canal cleaning, sterilizing & debris removal.
• E-2: 95° angle holder for 0.8mm U-files — molar root canal cleaning, sterilizing & debris removal.
• E-3: Ultrasonic vibration tip for softening filling material — facilitates lateral condensation post-cleaning.
• E-4: Diamond-coated, durable tip for retreatments and hard material removal. Compatible with UDS series scalers.
• E-4D: Diamond-coated (15mm) for removing calcification and poor filling material during retreatment.
• E-5: Slender tip (16mm) for removing root filling obstructions during retreatment.
• E-5D: Diamond-coated (10mm) for calcification and poor filling material removal during retreatment.
• E-8: Bur holder tip — compatible with standard and implant burs; suitable for anterior teeth.
• E-9: Bur holder tip — compatible with standard and implant burs for varied tooth treatments.

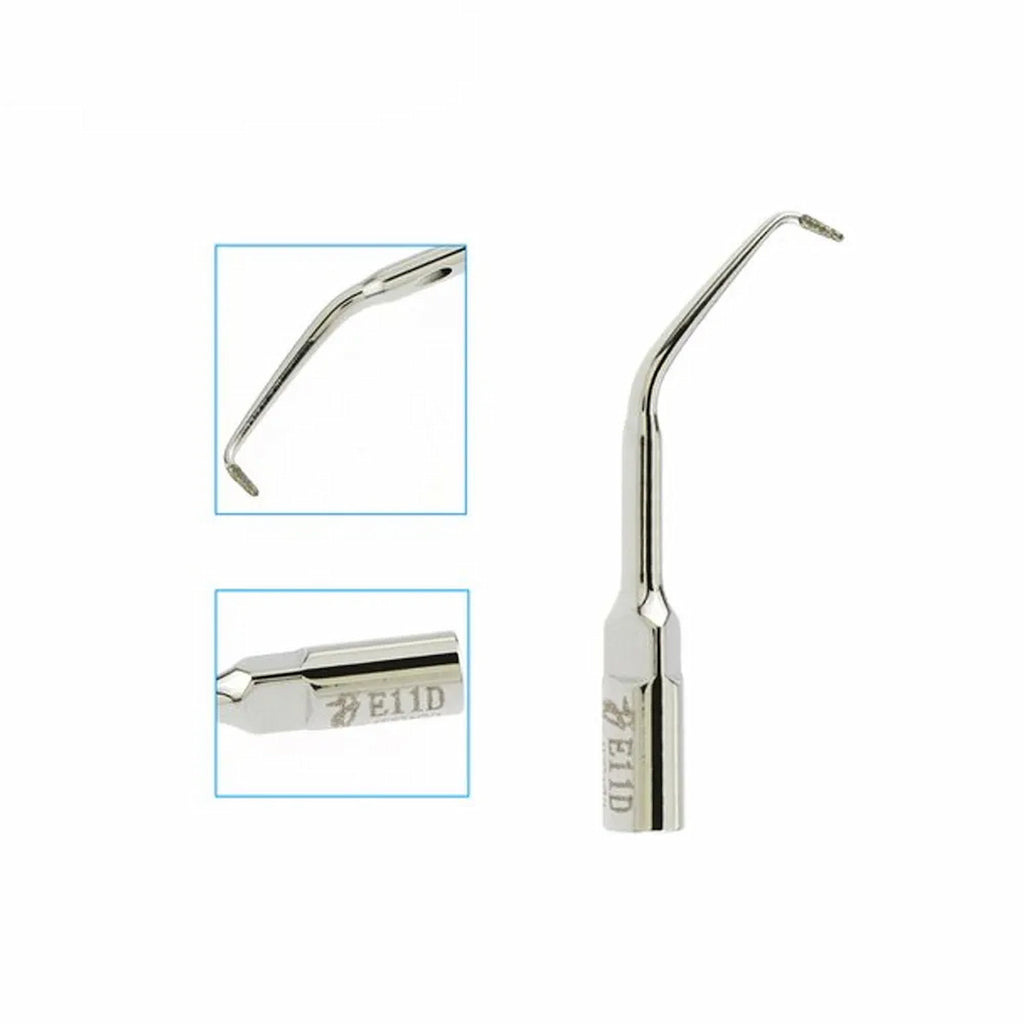

• E-11D: Diamond-coated (40μm grit, 2.2mm) for highly efficient root planning in retrograde canal preparation.
• E-11: Soft root canal treatment tip for gentle intracanal procedures.
• E-14: Slender tip (22mm) for removing root filling obstructions during retreatment. Use with irrigation; avoid axial pressure.

Key Features

• Precision-engineered for ultrasonic scaler compatibility (UDS series)
• Diamond-coated variants for retreatment and retrograde procedures
• Angle-specific designs for anterior and molar access
• Durable construction for repeated clinical use
• Sold individually by tip size — select your required tip above

Specifications

• Brand: Woodpecker
• Compatibility: UDS Series Ultrasonic Scalers
• Available Sizes: E-1, E-2, E-3, E-4, E-4D, E-5, E-5D, E-8, E-9, E-11, E-11D, E-14
