Woodpecker Ultrasonic Scaler Handpiece

The Woodpecker Ultrasonic Scaler Handpiece uses advanced piezoceramic technology to convert electrical energy into precise mechanical vibrations for effective dental calculus removal. Ergonomically designed for comfortable pen-grip handling, it is compatible with Woodpecker UDS and DTE series ultrasonic scaler units.

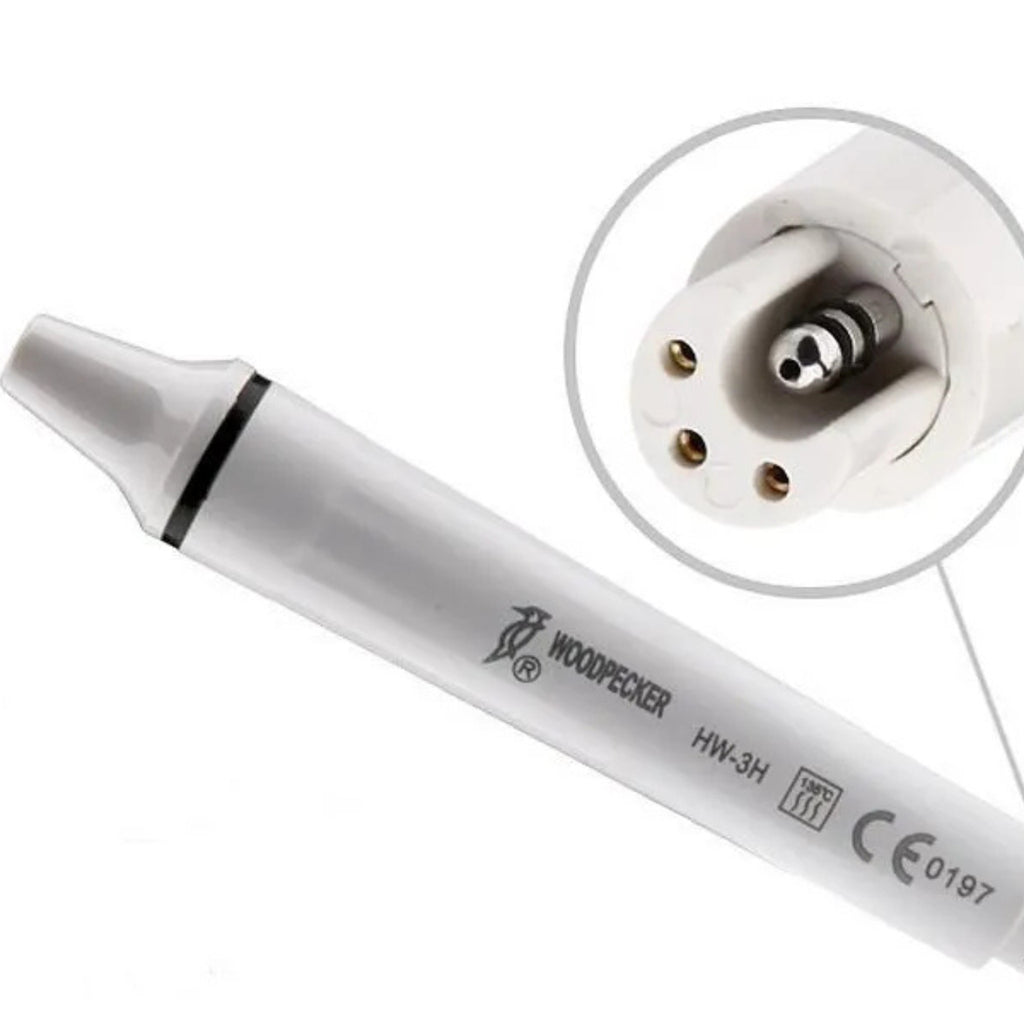

Technical Specifications (Model HW-3H)

• Length: 117 mm
• Diameter: 18 mm
• Weight: 47 g
• Vibration Frequency: 28 kHz ± 3 kHz
• Water Pressure: 0.01 MPa – 0.5 MPa

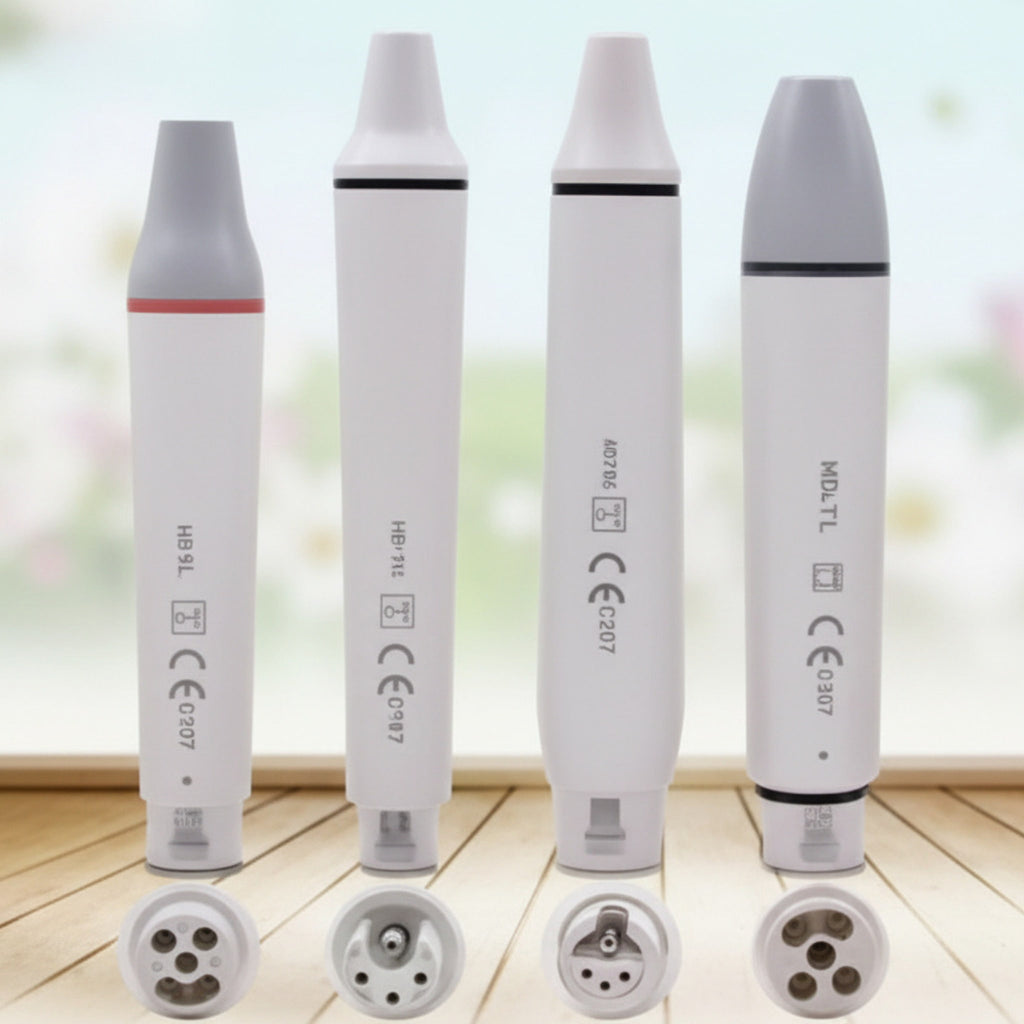

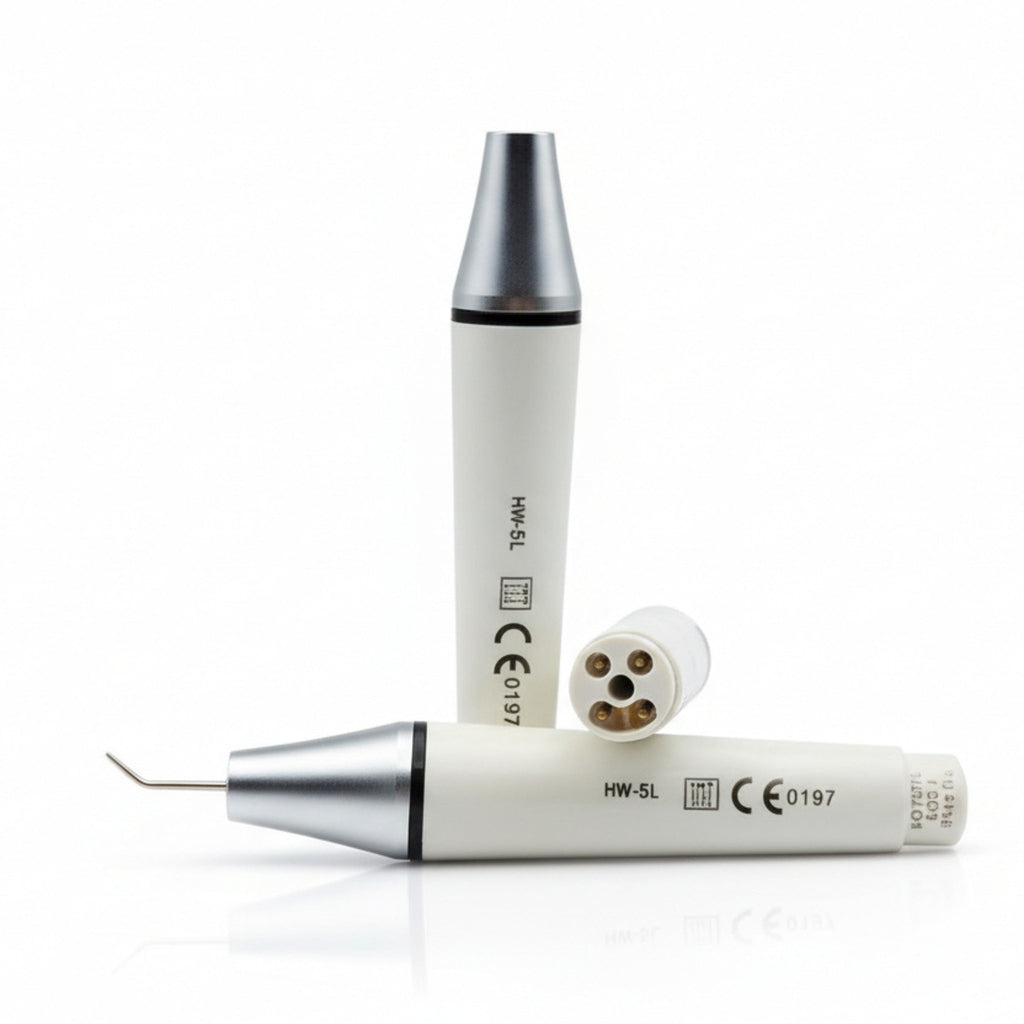

Available Models

• UDS-J — Standard handpiece for UDS-J scaler unit
• UDS-P — Standard handpiece for UDS-P scaler unit
• DTE-D-3 — Compatible with DTE-D3 scaler unit
• DTE-D-5 Non LED — Compatible with DTE-D5, without LED
• DTE-D-5 With LED — Compatible with DTE-D5, with integrated LED illumination

Key Features

• Piezoelectric technology for precise, controlled scaling
• Ergonomic pen-grip design for reduced operator fatigue
• Autoclavable: 134°C, 2.0–2.3 bar, 4 minutes
• Suitable for scaling, root planing, and endodontic applications
• Compatible with standard Woodpecker scaling tips (torque wrench included)

Usage Guidelines

• Ensure handpiece is dry before connecting to the scaler cable
• Adjust water flow and vibration intensity before use
• Avoid vertical tip contact with tooth surfaces; do not apply excessive pressure
• Flush handpiece with water for 30 seconds after each use
• Sterilize after every patient; clear cleaning liquid with three-way syringe before autoclaving
• Store in a cool, dry, ventilated area away from hazardous materials

Brand: Woodpecker | Warranty: 1 year | Country of Origin: China
